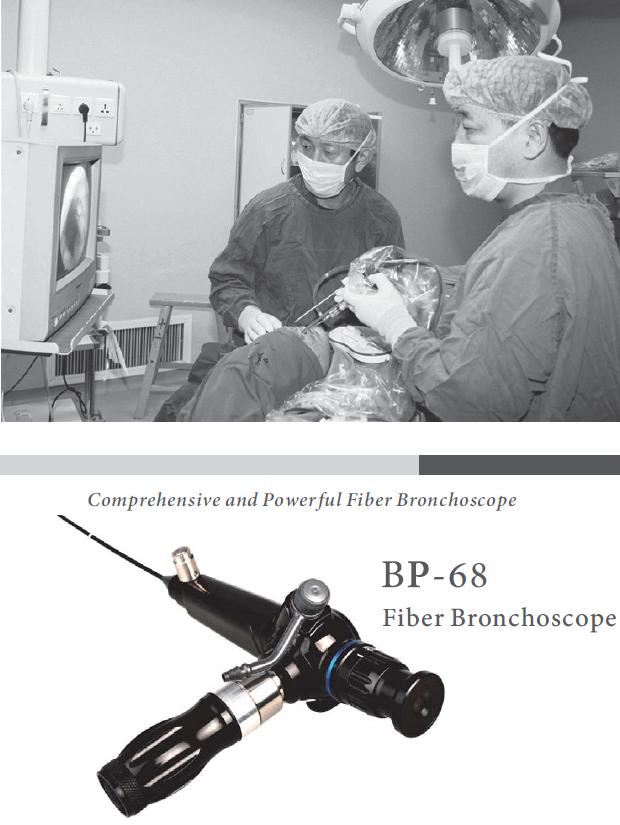

BP-68
Portable Fiber Bronchoscope
|
Item/Model |
FE-BP68 Routine |
FE--BP66 Pediatric |
FE--BP66P Large channel |
FE--BB66P Intubation type |
|
Field of View |
110° Forward viewing |
intubation 100* Forward |
100' Forward |
100* Forward |
|
Depth of View Field |
3mm-50mm Fixed Focus |
3mm-50mm Fixed Focus |
3mm-50mm Fixed Focus Up |
3mm-50mm Fixed Focus Up |
|
Range of Tip Bending |
Up 180°, Down 130* |
Up 180*. Down 130* |
Up180". Down |
Up180\ Down 130* |
|
Outer Diameter of Distal End |
0 4.9mm |
0 3.5mm |
0 5.9mm |
0 4.9mm |
|
Outer Diameter of Insertion |
0 5mm |
0 3.6mm |
0 6mm |
0 5mm |
|
Inner Diameter of Instrument |
0 2.2mm |
0 1 2mm |
0 2.8mm |
0 2.2mm |
|
Working Length |
550mm/600mm |
550mm/600mm |
550mm/600mm |
550mm/600mm |
|
Waterproof |
• |
• |
• |
• |
Portable Fiber Bronchoscope
Standard Configurations:
Portable Fiber Bronchoscope main unit#1;
Light cable*1;
Portable Mini light source*1;
Plug valve capsM;
Ventilation cover*5;
Hand-pressed endoscopic leak detector* 1;
Attract button* 1;
Biopsy forceps* 1;
Pipe cleaning brush*1;
Biopsy cleaning brush*1;
7# battery*3;
Product Quality Assurance*!;
Technical lnstructions*1;
User Manual*1;
Carton box*2
